SDI Video Outputs

2 x SDI Video Outputs.

Analog Video Inputs

NTSC, PAL, S‑Video and Component SD/HD input.

Analog Audio Inputs

2 channels of balanced analog audio.

Digital Audio Inputs

2 channels of balanced AES/EBU audio.

Multi Rate Support

Auto detection of SD or HD.

Updates and Configuration

Via USB 2.0 high speed. (480 Mb/s)

Reclocking

Yes

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU‑R BT.656 and ITU‑R BT.601.

SDI Video Rates

SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling

4:2:2

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

4:2:2

SDI Color Space

YUV

SDI Auto Switching

Automatically follows format of analog input.

Analog Video Standards

525i29.97 NTSC, 625i25 PAL

Analog Color Space

YUV

Analog Color Precision

4:2:2

Software Control

Mac™ and Windows™ software upgrade via USB.

Internal Software Upgrade

Via included updater application.

Power Supply

12V universal power supply included with international socket adapters for all countries. Cable tie point.

Power Consumption

6.50 Watts

Operational Voltage Range

12 ‑ 31V DC

Operating temperature

0° to 40° C (32° to 104° F)

Storage temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non‑condensing

What's Included

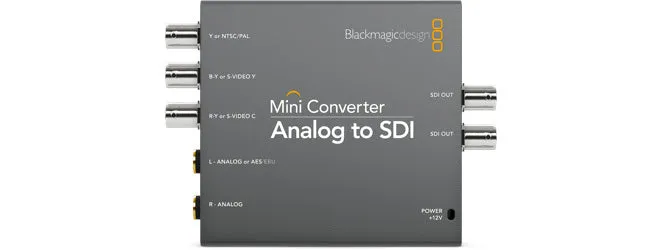

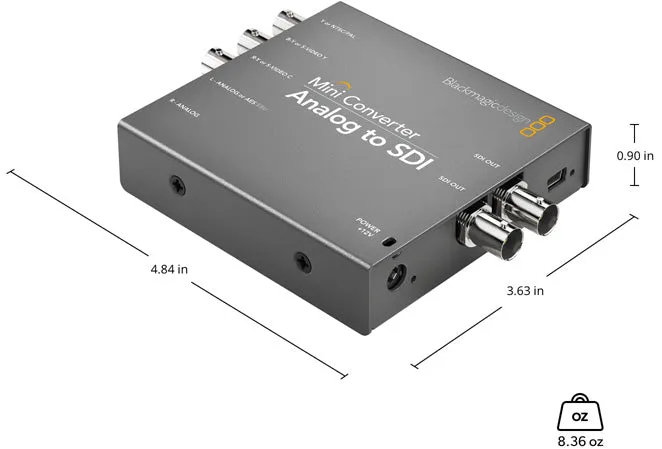

Mini Converter Analog to SDI

12V AC adapter with international socket adapters for all countries.

Warranty

3 Year Limited Manufacturer's Warranty.
